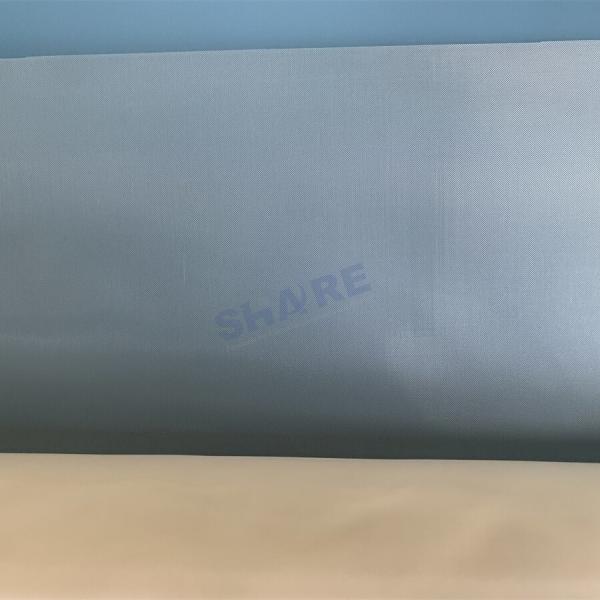

Resin Mesh PPS Mesh Membrane
High-performance PPS mesh membrane with 120 wire diameter, 55 µm eye opening, 156 µm open area, 55% thickness, and available in sizes 100cm, 200cm, and 300cm.
Product Specifications
Material: 100% PPS Monofilament
Width: Up to 300cm
Forms: Fabric, Bag, Custom Shape
Key Features
- Heat resistance (continuous use up to 190°C)
- Chemical resistance to acids, alkalis, and organic solvents
- Hydrolysis resistance at elevated temperatures
- Flame retardancy
- Uniform fabric structure
- High porosity and large surface area
- Affordable pricing
Applications
- Ion exchange processes
- Alkaline water electrolysis for hydrogen production
- Feed and food drying
- Filtration for food, semiconductor, and chemical applications
- Chemical catalyst substrates
- Oil-water separation
- Gas filtration and purification
- Wastewater treatment
- Air pollution control
- Desalination
Technical Specifications
Available Mesh Options
Thread Diameter: 30 - 250 µm
Mesh Count: 25 - 420 per inch
Mesh Opening: 30 - 800 µm
Open Area: 25 - 60%
Mesh Thickness: 56 - 508 µm
Pattern: Plain weave, twill weave
Width: Up to 300cm (custom widths available)
Technical Datasheet
| Material |
Item No. |
Specification |
Thread Diameter (µm) |
Mesh Opening (µm) |
Open Area (%) |
Mesh Thickness (µm) |
Weight (g/m²) |
Tensile Breaking Strength (N/5CM) |
Tensile Elongation (%) |
| PPS |
20T-140 |
350/51PW |
140 |
350 |
51 |
260 |
86 |
660/643 |
29.5/27.8 |
| PPS |
20T-150 |
340/48PW |
150 |
340 |
48 |
280 |
100 |
766/755 |
29.5/28.4 |
| PPS |
47T-55 |
156/55PW |
55 |
156 |
55 |
100 |
34 |
246/253 |
26.4/30 |
| PPS (Toray yarn) |
20T-150 |
340/48PW |
150 |
340 |
48 |
287 |
100 |
810/780 |
24/24 |
| PPS (Toray yarn) |
59T-45 |
125/54PW |
45 |
125 |
54 |
80 |
27 |
210/210 |
17.7/17.7 |
Product Images
Packaging & Shipping
Our standard packaging includes:
- Rolled on paper core or plastic pipe
- Packed into PE bags
- Placed in standard export cartons
- Additional PP woven bag for transportation protection
Labels include: item name, manufacturer, material, dimensions, manufacturing date, order number, and batch number.
Shipping Options
| Method |
Port to Port |
Door to Door |
| Express (DHL, UPS, FEDEX, EMS) |
|
1 - 5 days |
| Air Freight |
1 - 5 days |
4 - 10 days |
| Sea Freight (FCL) |
15 - 30 days |
20 - 35 days |
| Sea Freight (LCL) |
15 - 30 days |
22 - 37 days |
Frequently Asked Questions
Where is your factory located?
We are located in Taizhou city, Zhejiang province, China. Approximately one hour from Hangzhou and two hours from Shanghai by train.
Can I get free samples?
Yes, we provide free samples for evaluation, typically delivered within 2 days.
How long does a quotation take?
We usually respond within 2 days. If any details in your RFQ need confirmation, we will notify you promptly.
What is your production lead time?
Production typically takes 5 to 15 working days after order placement, depending on quantity.
What about your quality control?
Our quality control includes operator self-inspections at every stage, spot inspections, and final QC checks using visual inspection, optical equipment, and automated 3D image-inspection systems.
What are your payment terms?
We accept T/T, LC, and other standard payment methods.
